Use range:
WLS type shaftless screw conveyor is mainly applicable to the sewage treatment plant transportation grid slag, sludge dewatering machine mud cake etc..
The structure and working principle:

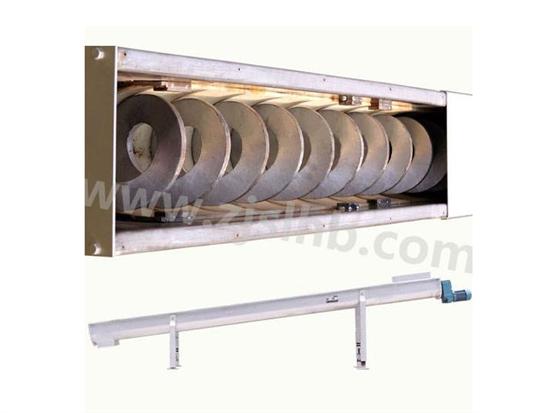

WLS type shaftless screw conveyor comprises a driving device, screw body, U groove, lining plate, cover plate, feed hopper, discharge port etc.. Its working principle is: the material from the hopper into the conveyor, the screw is pushed to the outlet from rotating.
Performance characteristics:
1, simple structure, non bearing conveying trough, material conveying fluid;
2, the transfer process in the conveying trough closed, the material does not overflow, avoid pollution two;
3, the screw body adopts the special processing technology of whole forming, forming a length more than 2.5 meters;
4, low speed, low noise, low energy consumption, maintenance free.
The installation form:
Standard for ground mounted fixed horizontal or inclined installation type, can also provide hanging, hanging ground and mixed fixed inclined, mobile according to user requirements (around the inlet axis) and other special installation.
The shape and size of installation：
No shaft delivery specifications:
|
Model
|
WLS-260
|
WLS-300
|
WLS-320
|
WLS-355
|
WLS-420
|
WLS-500
|
|
Power (KW)
|
4.0
|
4.0
|
4.0/5.5
|
5.5
|
7.5
|
7.5
|
|
Texture of material
|
Stainless steel
( Carbon steel )
|
Stainless steel
( Carbon steel )
|
Stainless steel
( Carbon steel )
|
Stainless steel
( Carbon steel )
|
Stainless steel
( Carbon steel )
|
Stainless steel
( Carbon steel )
|
