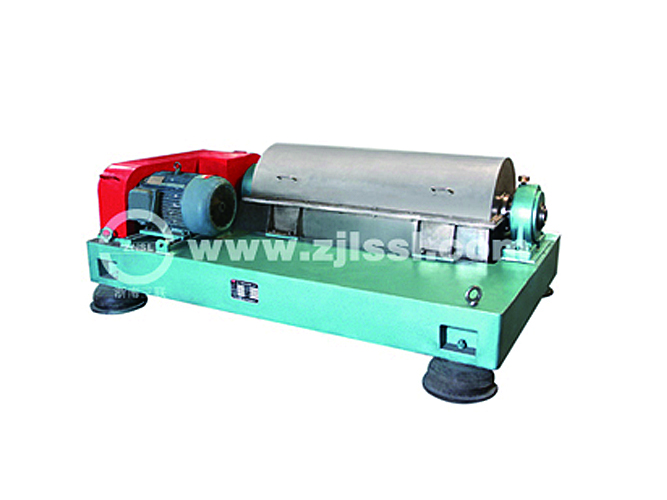

Single motor horizontal screw centrifuge

Product details

Structural characteristics:

1.main parts, the corrosion resistance of stainless steel drum manufacturing;

2. the feeding screw adopts special anti abrasion measures, with resistance to hard alloy spray welding hard alloy protection layer or inlay;

3. high aspect ratio, high speed. Drum cone structure with multiple angles;

4. can choose a heavy load, large transmission ratio, cycloid planetary gear or hydraulic differential;

5.The microcomputer control system of differential speed and torque can be adjusted automatically with the change of flow rate, the concentration of materials;

6. with BD plate horizontal spiral sedimentation centrifuge, separation on a variety of different proportion of the initial sink, activated sludge concentration and dehydration and difficult to separate materials.

Product structure diagram:

Drive assembly:
　　Our company for the use of specific background and requirements, the development of a variety of combinations of centrifuge and propellers: Using an AC variable frequency motor + frequency converter or an electromagnetic adjustable speed motor and driving drum and screw speed, by replacing the belt wheel to adjust the difference;

Application field:

　　All the materials listed below are only part of a variety of purposes, new uses are increasing. For a specific material through the test and comparison, to determine the type and corresponding technical parameters of centrifuge.

Solid-liquid separation	Sludge dewatering	Size classification	Liquid clarification
PVC resin	Power plant sludge	Titanium dioxide	Soybean protein
Ammonium sulfite	Dyeing sludge	Kaolin	Peanut protein
Barium carbonate	Paper sludge	Starch	Fruit juice
Strontium carbonate	Natural gas desulfurization sludge	Drilling mud	Drinks
Xin Defen	Calcium carbide sludge	Coal flotation	Vegetable oil
Barium sulfate	Sludge Fiberboard	Crystal flotation	Citric acid
Calcium sulfate	Drilling mud	Diatomite	Waste oil purification
Starch	Two chlorine mud	Gypsum	Washing water purification
Alcohol wastewater	Car sludge	Bauxite	Orange juice
PTA	Activated sludge	Clay	Two chlorine mud
Blood meal	Gypsum	Ore	Alum sludge

Product parameters:

	Drum diameter×Length mm	Drum speed r/min	The maximum separation factor	The mixed liquid handling capacity m3/h	Differential speed r/min	Motor				Host weight kg	Size Long×weight×height mm
	Drum diameter×Length mm	Drum speed r/min	The maximum separation factor	The mixed liquid handling capacity m3/h	Differential speed r/min	Host model	Speed r/min	The host power KW	Auxiliary power KW	Host weight kg	Size Long×weight×height mm
LW-250	φ250×963	3266	1493	2-5	20	Y132S-4/2	1440/2890	5.5	/	1000	1880×1000×635
LW-350	φ350×1550	2800	1536	4-12	16	Y160M1-2	2930	11	/	1500	2630×1200×755
LW-360	φ360×1550	2800	1580	4-13	16	Y160M1-2	2930	11	/	1500	2630×1200×755
LW-450	φ450×1620	2700	1837	6-18	16	Y180L-4	1470	22	/	2000	3000×1380×830
LW-500	φ500×1800	2600	1893	8-25	16	Y225S-4	1480	37	/	2000	3300×1410×900
LW-550	φ550×1980	2500	1925	10-30	16	Y225M-4	1480	45	/	2500	3500×1410×900
