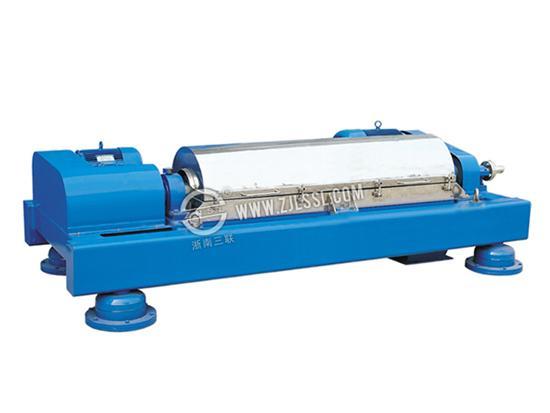

LWnj series slurry separation dehydration machine

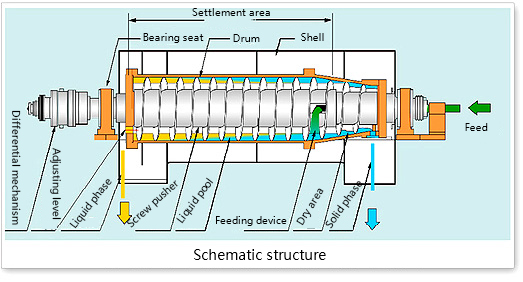

Structural characteristics:

1.main parts, the corrosion resistance of stainless steel drum manufacturing;

2. the feeding screw adopts special anti abrasion measures, with resistance to hard alloy spray welding hard alloy protection layer or inlay;

3. high aspect ratio, high speed. Drum cone structure with multiple angles;

4. can choose a heavy load, large transmission ratio, cycloid planetary gear or hydraulic differential;

5.The microcomputer control system of differential speed and torque can be adjusted automatically with the change of flow rate, the concentration of materials;

6. with BD plate horizontal spiral sedimentation centrifuge, separation on a variety of different proportion of the initial sink, activated sludge concentration and dehydration and difficult to separate materials.

Product details

Structural characteristics:

1.main parts, the corrosion resistance of stainless steel drum manufacturing;

2. the feeding screw adopts special anti abrasion measures, with resistance to hard alloy spray welding hard alloy protection layer or inlay;

3. high aspect ratio, high speed. Drum cone structure with multiple angles;

4. can choose a heavy load, large transmission ratio, cycloid planetary gear or hydraulic differential;

5.The microcomputer control system of differential speed and torque can be adjusted automatically with the change of flow rate, the concentration of materials;

Drive assembly:

　　Our company for the use of specific background and requirements, the development of a variety of combinations of centrifuge and propellers:

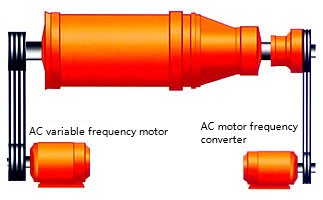

　　1, the two AC motor + two inverter driven rotary drum and screw speed, by adjusting the motor speed to adjust the difference of vice. Another increase speed difference automatic control function;

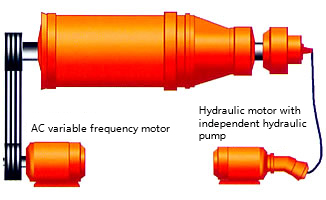

　　2、Using an AC variable frequency motor + inverter driving drum, a hydraulic motor with independent hydraulic pump drive screw speed (frequency), by regulating the flow of a hydraulic pump to adjust the difference. According to the differential speed pushing load automatic feedback regulation.

Application field:

　　All the materials listed below are only part of a variety of purposes, new uses are increasing. For a specific material through the test and comparison, to determine the type and corresponding technical parameters of centrifuge.

Oil drilling mud pouring solid processing

Building mud dehydration

Sand mud separation

The Tunnel Cave mud separation

Tailings mud treatment

Product parameters：

Serial number	Type / specification	Drive type	Total motor power kw	Drum speed r/min	Solid cake volume T/h	The moisture content of sludge cake	Separation factor	Differential speed r/min	Size
1	LWnj-F-3500	Double motor	22.5	3500	2-3	40%	2400	5-35	24801200755
2	LWnj-A-5000	Double motor	41	3000	3-5	40%	2167	5-35	29401510920
3	LWnj-B-6000	Double motor	63.5	2500	5-8	40%	1750	5-35	33301650960
4	LWnj-E-6500	Double motor	73.5	2500	6-9	40%	1855	5-35	345017501000
5	LWnj-C-7500	Double motor	105	2000	8-15	40%	1761	5-50	361019001150
6	LWnj-D-10000	Double motor	120	2000	15-20	40%	1613	5-50	408020501300
